> For the complete documentation index, see [llms.txt](https://rc.sunbird.org/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://rc.sunbird.org/registry/technical-overview/technical-specification-draft.md). # Technical Specification Draft Terminology, schemas, configuration, attestation, enrolment, discovery and consent for the Sunbird RC registry. ## Terminology
TermDefinition
DataElectronic data of any type. It could be simple data or composite data.
DatabaseA software system that stores and manages data.
SchemaMachine-readable definition of data.
Actor (Subject)A person, entity or thing that has been identified.
Transaction / Interaction DataData representing details of an interaction or transaction done among one or more actors within a system.
SoR (System of Record)A software system that is the primary system enabling a specific set of transactions/interactions through a set of workflows and user interfaces. Identities of actors participating in these transactions/interactions may be linked to a registry.
RegistrationThe act of registering or enrolling an actor into a system.
ClaimA statement made by an actor which can be verified.
AttestationThe act of verifying and authorizing specific data in a digitally signed fashion by an authorized individual/entity (whose identities are typically linked to some other registries).
DiscoveryThe act of finding specific entries in a registry through a search/find mechanism.
AssertionThe act of verifying a claim.
ConsentApproval given by an actor to another person/system to access the actor's data for purposes of a transaction/interaction.
CredentialA digitally represented, verifiable artifact containing a qualification, achievement, milestone, fact, etc., issued to an actor so they can make claims.
RegistryAn electronic registry is a system acting as a single source of truth. It houses a set of common attributes of the actor in a trustable (attested) and non-repudiable (audited) fashion, under the actor's control — enabling actors to authenticate themselves and make claims about themselves, with their consent, which can be electronically verified by third-party systems.
Information ProviderAn authorized entity or person who manages a SoR to enable specific transactions/interactions among various actors. Using their systems of record, this entity provides digitally verifiable credentials, documents, certificates, transaction/interaction data, etc. back to actors.
Information UsersAn entity accessing credentials/data of an actor, with the actor's consent, to make assertions and provide various services/products.

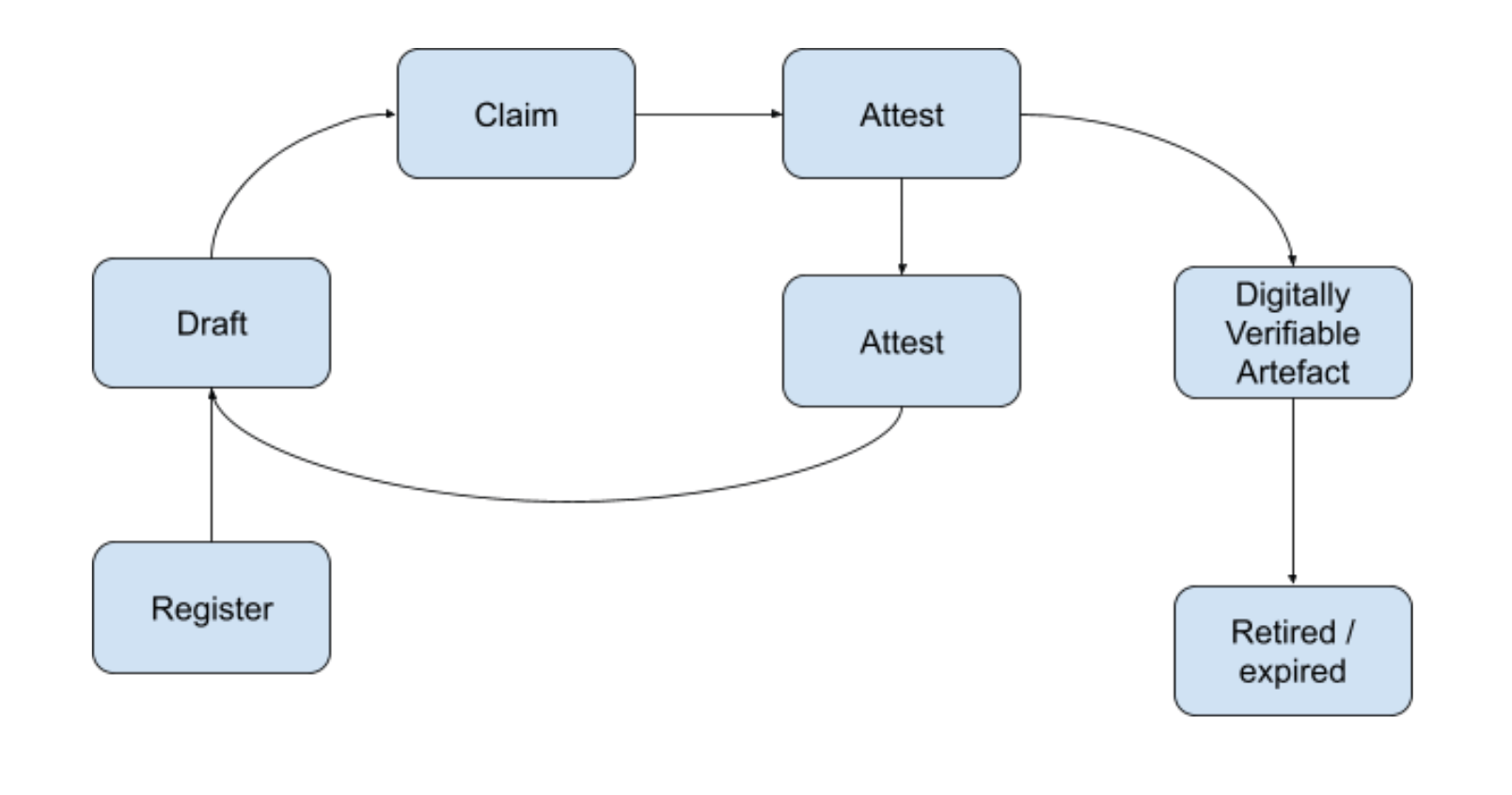

## Workflow ![](https://content.gitbook.com/content/7jgborogcaGcMV6ZkXme/blobs/m6oM2NweWAKJatA3DIou/screenshot-2021-09-09-at-3.46.52-pm.png) ## Schema All registries have attributes pertaining to the entity or fact in question, whether a person or a thing. A schema defines the structure and constraints of the entity. Sunbird RC uses standard JSON-LD based schemas. In the example below, `Place` is the concept the registry stores, supporting `name`, `city`, `addressRegion` (state) and `country`. ### Example ```json { "$schema": "http://json-schema.org/draft-07/schema", "type": "object", "properties": { "Place": { "$ref": "#/definitions/Place" } }, "required": [ "Place" ], "title": "Place", "definitions": { "Place": { "$id": "#/properties/Place", "type": "object", "title": "The Place Schema", "required": [ "name", "city", "addressRegion", "country" ], "properties": { "name": { "type": "string" }, "city": { "type": "string" }, "addressLocality": { "type": "string" }, "addressRegion": { "type": "string" }, "country": { "type": "string" }, "postalCode": { "type": "string" }, "contact": { "type": "string" } } } }} ``` ## Configuration In addition to JSON-LD specific data types, Sunbird RC supports various extension configurations under `_osConfig`. Access, indexing, primary keys, etc. are configurable using schema configuration. ### Property data types and restrictions Supported types: * **String** — Unicode text; additional regular-expression restrictions can be applied. * **Enum** — a restricted list of values. * **Number** — numeric data. ### List of attributes Collections of data values are also supported, as multiple values might represent an entity property — for example, subjects taught: `["english", "science", "mathematics"]` ### Visibility scope There are three types of visibility on attributes:
VisibilityWho can access it
PublicAvailable in discovery by default — no permission or authorization is needed.
Private (privateFields)Accessible by the owner by default; third parties can access the field with consent.
InternalSystem fields that only serve internal functionality. These can never be accessed by any actor in the system.
### Primary keys for entities Primary keys from the domain space help enforce uniqueness of information and make it easily accessible. Use `uniqueIndexFields` to configure them. ```json "uniqueIndexFields": [ "identityValue", ... ] ``` ### Index field set Indexes help with faster access to information. Index fields can be configured based on the usage context: ```json "indexFields": ["phoneNumber", ... ], ``` ### Validation extensions JSON-LD schema allows defining basic type constraints such as numeric type, text or a list of items. It also allows a list of possible values for given attributes (enum), and regular-expression based constraints for the value. ### Schema access API Sunbird RC supports the following API for accessing schemas: ```http GET /api/docs/{entityName}.json ``` The Swagger document is accessible at: ```http GET /api/docs/swagger.json ``` ## Attestation ### Configuration Attestation on a given set of fields is configurable with schema configuration. Below is an example of an attestation requirement using DSL: ```json "attestationPolicies": [ { "property": "experience/\[\]", "paths": [ "experience" ], "attestorEntity": "Institute", "conditions": "\(ATTESTOR\#$.instituteName\#.contains\(REQUESTER\#$.institute\#\)\)" }, ... ] ``` ### Attestation types Attestation requirements will be mixed: some need human verification, while others can be completely digital. To begin with, registries can allow both manual and automatic attestation. For example, a teacher rewarding and attesting grades can be a manual activity, while an identity claim can be attested digitally by an identity provider like Aadhaar. {% tabs %} {% tab title="Manual attestation" %} Manual attestation may need a workflow. By default, the registry supports raising a claim against a pre-configured attestation requirement. The claim is routed to the appropriate authority/role based on the configuration. Once the claim is approved or rejected, the respective fields in the claim show as verified or invalid. The attestor is controlled with the `attestorEntity` configuration. {% endtab %} {% tab title="Automated attestation" %} Digital registries can interoperate, sharing trusted claims and information among themselves. To do so, a claim can be routed to an automated registry verifier, which proxies for another registry and takes care of verification and attestation. Such attestation can be time-bound or one-time. **Example:** An identity registry can be used to prove the identity of a subject without manual verification. A mobile OTP-based consent flow can verify the identity and mark the subject's name as verified. Eventually, certificates issued by educational institutions can also be verified digitally. {% endtab %} {% endtabs %} ### Attestation API ```http POST /api/v1/{entityName}/{entityId}/attest/{propertyID} { "action":"GRANT_CLAIM" ... } ``` ### Custom extensions The attestation workflow might need custom stages and transition rules based on the use case. Attestation is extensible, so you can add or customize these workflows and add custom rules as needed. ## Enrolment / signup ### Sign up The enrolment/signup API supports self-signup and bulk invites to register in the registry. {% hint style="info" %} One of the principles of the registry is to avoid loading stale data from databases, and instead give subjects control — letting them participate in registration and manage their own data, rather than someone else managing it for them. {% endhint %} ```http POST /api/v1/{entityName}/invite { "name":"Suresh", "email":"suresh@example.com" } ``` ### Update information ```http PATCH /api/v1/{entityName}/{entityId} { "fieldPaths":["/name"] } ``` ## Discovery ### Search API ```http POST /api/v1/search { "email":"suresh@example.com" } ``` ### Directory Example: pincode lookup ```http POST /api/v1/search { "state":"Karnataka" } ``` ## Consent API ### Authentication flow ![](https://content.gitbook.com/content/7jgborogcaGcMV6ZkXme/blobs/V5Jc3KZB9UgVrmjKc9vk/screenshot-2021-09-09-at-3.48.47-pm.png) ### Request scopes and sharing attributes ```http GET /partner/api/v1/{entityName} ``` ## Use cases * Building a blood donor registry * Building a simple pincode directory service * Education registry * Immunization * Authentication and consent usage in a learning application --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://rc.sunbird.org/registry/technical-overview/technical-specification-draft.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
